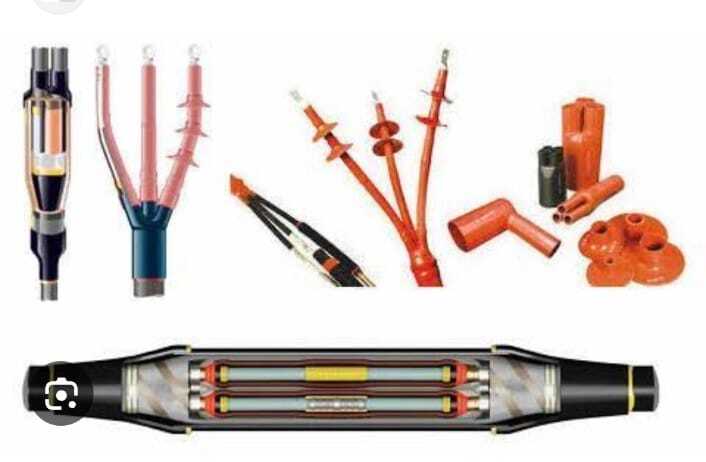

Low Voltage Cable Jointing Kits

Name: Low Voltage Cable Jointing Kits
Brand: GLOBAL POWER INDUSTRIES
Price: 2500 INR
Availability: InStock

Price 2500 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Low Voltage Cable Jointing Kits Specification

Conductor Type
Single-core or multi-core stranded

Impedance
50 ohms (approximate, varies by cable type) Ohm (ohm)

Conductor Shape
Circular/Stranded

Features
High sealing performance, easy installation, weatherproof, moisture resistant

Insulation
PTFE

Tensile Strength
15 MPa Megapascals (MPa )

Number of Conductor
1, 2, 3, or 4 core (as required)

Install Type
Heat Shrink/Cold Applied/Resin Cast

Diameter
Accommodates cables 10 mm to 60 mm (varies by kit) Millimeter (mm)

Dielectiric Strength
15 kV/mm Kilopascals (KPa)

Core Number
Varies per order specification (1-4)

Core Material
Copper

Locking Type
Mechanical Locking (in select kits)

Rated Temperature
-20C to +90C Celsius (oC)

Weight
0.5 kg to 2 kg per kit (approximate) Kilograms (kg)

Armored Material
Galvanized Steel Wire / Tape (if applicable)

Operating Temperature
-20C to +90C Celsius (oC)

Usage & Applications
Electrical distribution networks, industrial, and utility projects

Product Type
Low Voltage Cable Jointing Kit

Length
Customizable (typically 1 m to 3 m per kit) Millimeter (mm)

Voltage
Up to 1.1 kV (Low Voltage)

Insulation Material
PTFE

Application
Other

Conductor Material
Copper

Jacket Material
Polyvinyl Chloride (PVC) or Heat Shrink

Storage Temperature
-30C to +60C Celsius (oC)

Connector Color
Black / Red / Blue (Varies by kit type)

Shield Material
Copper tape or aluminum foil

Jacket Color
Any Color

Dimension (L*W*H)
Varies based on cable size, standard kits available Millimeter (mm)

Color
Black, Red, Blue, Yellow, or as specified

Material
Polymeric Resin/Heat Shrink Tubing/Plastic Molded

Size
Suitable for cable sizes 1.5 sq.mm to 300 sq.mm

Chemical Resistance
Acid and alkali resistant

UV Resistance
Yes

Corrosion Resistance
High

Minimum Bending Radius
8 x Cable Diameter

Adhesive Lining
Hot Melt (for enhanced sealing)

Suitable Standards
ASTM, IEC, IS compliant

Flame Retardant
Yes (as per IEC 60332-1)

Shelf Life
24 months (unopened at recommended storage conditions)

Maximum Installation Altitude
2000 m above sea level

Packaging
Individual sealed kits with instruction manual

Ingress Protection Rating
IP67

Halogen Free
Available on request

RoHS Compliance
Yes

Dielectric Constant
2.1 (approximate)

Resin Composition
Polyurethane/Epoxy (varies by kit type)

Accessories Included
Copper Connectors, Abrasive Paper, Insulation Tape, Filling Compound

Low Voltage Cable Jointing Kits Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
5000 Pieces Per Month

Delivery Time
2-3 Days

Main Domestic Market
All India

About Low Voltage Cable Jointing Kits

Commanding industry standards, our Low Voltage Cable Jointing Kits are tailored for valiant performance in power and control cable connections. Highlighted features include an ingress protection rating of IP67, flame retardance per IEC 60332-1, and valuable resistance to corrosion, acid, alkali, and UV exposure. Designed for easy installation, each kit offers high sealing performance and weatherproofing. Accessories included enhance system integrity, while the customizable length suits any project need. RoHS compliance and halogen-free options are available. Grab yours now and enjoy special discount pricing!

Versatile Usage and Applications

Low Voltage Cable Jointing Kits are ideal for secure electrical distribution networks, industrial setups, and utility projects. Designed for low voltage applications up to 1.1 kV, they cater to all usage typesbe it new installations, repair, or extension work. With compatibility for power and control cables (single or multi-core), the kits can be cold-applied, heat shrink, or resin cast, making them extremely versatile for diverse cable jointing needs across demanding environments.

Reliable Supply and Swift Delivery

With stock ready for immediate handover, our Low Voltage Cable Jointing Kits ensure prompt and efficient order fulfillment. Quick dispatch is guaranteed, thanks to streamlined processes and experienced exporter/importer/manufacturer operations in India. Certified to ASTM, IEC, and IS standards, each kit comes with an individual instruction manual and sealed packaging for safe transit. Customers benefit from reliable delivery and industry-approved products, perfect for urgent electrical infrastructure requirements.

FAQs of Low Voltage Cable Jointing Kits:

Q: How do I select the suitable Low Voltage Cable Jointing Kit for my cable size and type?

A: Choose a kit based on the cables core number, diameter, and size (1.5 sq.mm to 300 sq.mm). Verify compatibility with your installation type (heat shrink, cold applied, or resin cast) and desired standards (ASTM, IEC, IS) for optimal results.

Q: What accessories are included in the Low Voltage Cable Jointing Kits?

A: Each kit contains valuable accessories such as copper connectors, abrasive paper, insulation tape, filling compound, and hot melt adhesive lining for enhanced sealing. An instruction manual is also provided for ease of installation.

Q: When is the best time to install these kits for maximum shelf life and performance?

A: Install the kits within their 24-month shelf life and ensure storage between -30C and +60C if unopened. Proper conditions help preserve their commanding dielectric strength and moisture resistance.

Q: Where are these cable jointing kits commonly applied or used?

A: They are widely used in electrical distribution networks, industrial environments, infrastructure projects, and utility maintenance where reliable low voltage cable connections are required.

Q: What is the process for order handover and delivery of the kits?

A: On receiving a confirmed order, kits are packed in individual sealed units and handed over for quick dispatch. Reliable logistic operations facilitate swift delivery locally or for export, maintaining product integrity throughout transport.

Q: How does using these kits benefit electrical projects?

A: Utilizing these jointing kits provides valiant sealing, electrical safety, flame retardancy, and weatherproofing, ensuring the long-term reliability and lifespan of power and control cable installations.
